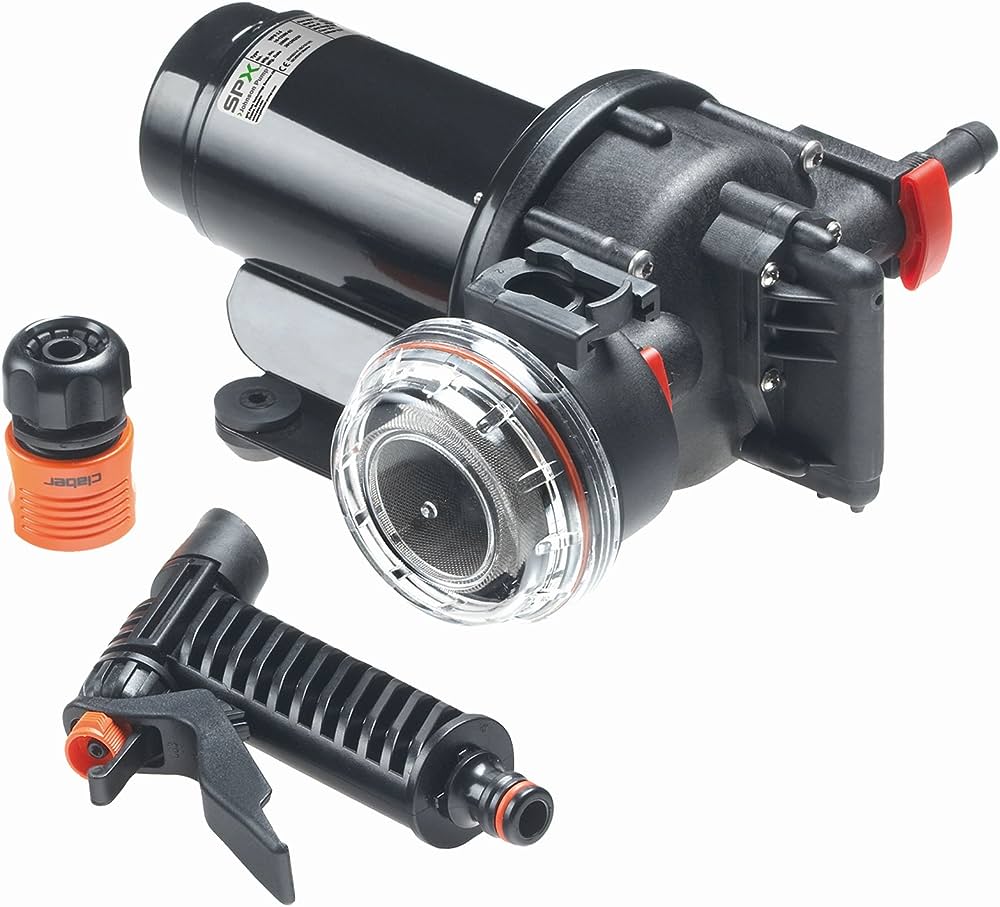

Johnson Pump 3.5 - 13 LPM 70PSI 12v Wash Down Pump

Johnson Pump 3.5 - 13 LPM 70PSI 12v Wash Down Pump

$280.00
$395.00 $280.00
Sale Sold out
  • 28-day returns*
  • 30-day Best Price Guarantee
  • Thousands of happy customers

Product Details

The quiet and pulsation-free Aqua Jet five-chamber diaphragm wash down pumps provide the perfect wash down solution for cleaning recreational equipment. With a higher pressure of up to 5 bar, clean-up is faster and easier than ever before.

  • Limited 3 Year Warranty
  • Up to 5 bar (73 psi) pressure
  • Whisper quiet operation
  • Five-chamber construction
  • Smooth flowing
  • Self-priming
  • Integrated pressure switch turns pump on and off automatically when the spray nozzle is opened and closed
  • Dry running without damage
  • Low power consumption
  • Easy, low cost maintenance
  • Quick disconnect fitting
  • Long service life

THEORY OF OPERATION

As the pump runs, pressure is increased until it reaches the pre-defined pressure level (2.8 bar – 41 psi for WD 2.9, 5 bar – 70 psi for WD 3.5 & 5.2). When the pre-defined pressure level is reached the integrated pressure switch automatically shuts the pump off.

The pump is equipped with positively checking outlet valves which ensure that the pressure is maintained after the pump shuts off.

When water is demanded the pressure decreases. After a moderate drop in pressure, the integrated pressure switch automatically turns the pump back on.

Due to their durable construction and thoughtful design, the WD-pumps will provide many years of service.

Material Specifications

Motor
Aqua Jet WD 3.5 – 3.5 - 13 LPM 70PSI 12v

Body  PA/PPA
Valves  Nitrile
Diaphragm  Santoprene

Technical Data

Part No. Description Capacity Pressure Cut Off Fuse Size Connection
10-13399-03 Aqua Jet WD 3.5 12V 13 l/min – 3.5 GPM 5 bar – 70 psi 20 A ⅜” BSP x ½” barb

Dimensions

Part No. Length Width Height Weight
10-13399-03 236.5 mm – 9.31″ 210 mm – 8.25″ 116 mm – 4.58″ 2 kg – 4.5 lbs

Dimensions

  • Weight: 2 kg – Shipping weight 3.1 kg
  • Length: 236.5 mm
  • Width: 210 mm
  • Height: 116 mm
  • Capacity: 13 litres per minute – 3.5 gallons per minute
  • Fuse: 15 AMP
  • Connection: 3/8″ BSP / hose 1/2″
  • Pressure Cut Off: 5 bar / 70 PSI

Package Inclusions

1x Johnson Pump Wash Down Pump

1x Hose connector

1x Wash handle
