Grade 80 Hammerlock 7/8mm 2t, Chain Connector Connecting Link Lifting

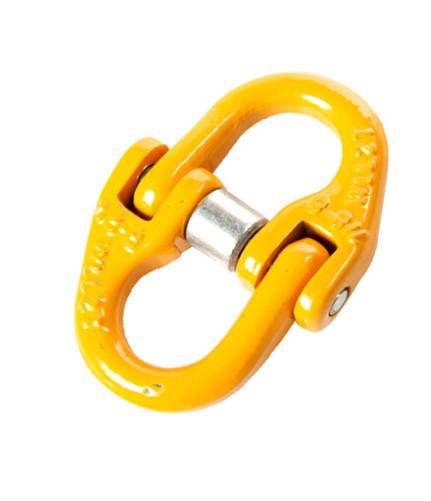

Grade 80 HammerLock Chain Connector Connecting Link

DESCRIPTION:
A hammerlock is a coupling link used to connect chains to other fittings when the inner dimension of the chain link does not provide adequate space. They are made from quenched and tempered alloy steel for high tensile strength and ductility, and consist of two separated body pieces, a tapered shaft, and a sleeve. It can be easily assembled and disassembled using only a hammer and punch.

Hammerlocks, also called chain connectors, are often used to connect Winch Hooks to steel cable or synthetic winch rope. They consist of a recessed pin that runs through the ends of the sleeve, allowing it to rotate while remaining securely joined.

A hammerlock, a link that connects chains to other fittings when the chain link is too small. Made of high-quality alloy steel, drop forged and heat-treated for strength and flexibility. Easy to assemble and disassemble, often used to connect winch hooks to steel cable/synthetic winch rope. Consist of two separate body pieces, a tapered shaft, and a sleeve Size: 7/8mm WLL: 2ton BS: 8.0ton Grade: 80 (T8) Test certificate supplied upon request Pin comes with Oxygen Black or Galv. randomly

FEATURES:
Size: 7/8mm
WLL: 2ton
BS: 8.0ton (4 times of WLL)
Grade: 80 (T8)
Made from Quality Alloy steel
Drop forged and heat treated
Test certificate supplied upon request
Pin comes with Oxygen Black or Galv. randomly
