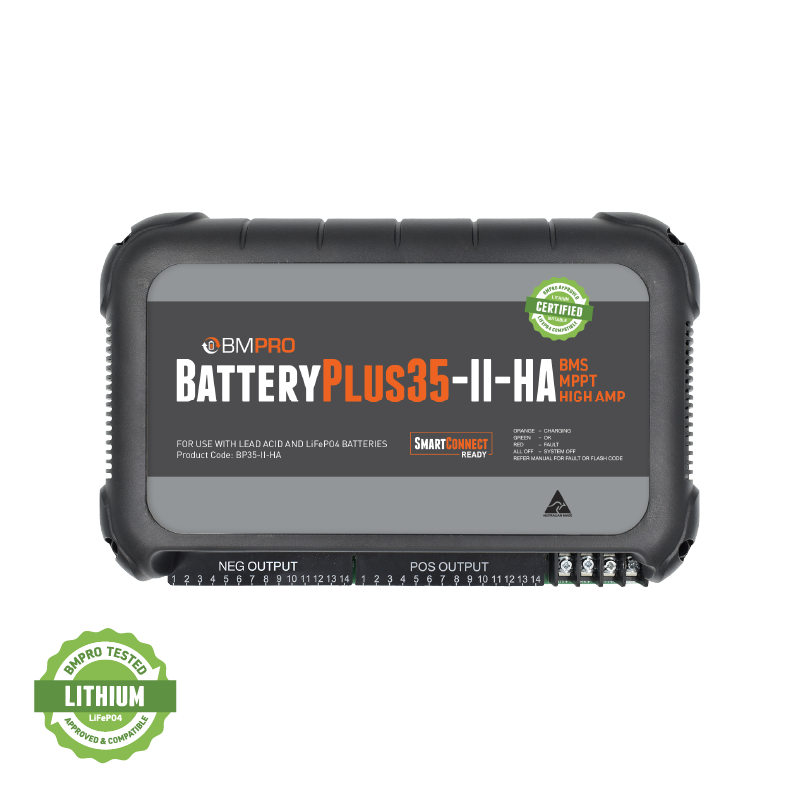

Battery Plus3 5-II-HA

FEATURES

• Electronic resettable fuses
• CAN bus connection for BMPRO accessories
• Solar and Aux Blending
• Auxiliary DC input
• Load current limit
• Low voltage disconnect
• Compatible with lead acid and lithium (LiFePO4) deep-cycle batteries

*Battery chemistry can only be altered or changed with the use of an OdysseyLink104/Odyssey Tablet or Trek Display

Australian designed and made high amp Power Management System compatible with lead acid and lithium batteries Battery Plus 35-II-HA is a complete high amp Power Management System designed to support transition of caravans to lithium batteries.
This all in one power solution combines a 35A power supply for 12V loads, 30A multi-stage AC charging and 30A Solar MPPT regulation as well as a host of battery protection features. Connect the unit via CAN bus to the Trek battery monitor or to monitor high currents via CommLink. BatteryPlus35-II-HA is pre-cabled with a permanent mains power supply cord for use with 240V or 110V input power – great for powered sites.The unit also features a 40A rated uncontrolled +BRK battery output. This output is specifically designed for loads which do not need to be isolated or have a current rating of higher than the inbuilt circuit protection of the individual outputs and have a current rating less than 40 A.
Use it to connect:

• Proactive electronic stability control sway control
• Emergency trailer break-away safety system trailsafe
• Heaters
• Stereo memory

Designed and manufactured in Australia, the slim and sturdy BatteryPlus35-II-HA is fully equipped to charge the current generation of deep cycle batteries. Connect solar panels to the Power Management System and power your adventures with renewable energy. Swap your caravan battery to the LiFePO4 deep cycle and harness the benefits of lithium. This high amp Power Management System is specially designed to ensure the best performance and longevity of lithium batteries.

Specifications:

• Input Voltage Range: 110V - 240V AC ± 10%, 50-60Hz
• Input Surge: <40A (cold start)
• Output Current (Load + Battery Current): 35A
• Factory Set Voltage (Float Voltage): 13.65V
• Output Ripple Voltage: <150mV
• Battery Current Limitmax: 30A
• Low Voltage Disconnect: Lead-acid: 10.8V ± 0.2V, LiFePO4: 12.0V ± 0.2V
• Battery Connect after LVD: Lead-acid: 12.8V ± 0.2V, LiFePO4: 13.8V ± 0.2V
• Battery Drain (when in Storage Mode): <15mA
• AC/DC Efficiency: >83%
• Cooling Fan: Digitally controlled
• Solar Output Current: 30A (nominal)
• Solar Start Voltage: 17.5V
• Solar Input Voltage (After Start-up ): 15V - 25V
• Ambient Temperature: 0°C to 50°C
• Communication: CAN Bus
• Dimensions: 327mm x 207mm x 82mm
• Weight: 2kg
